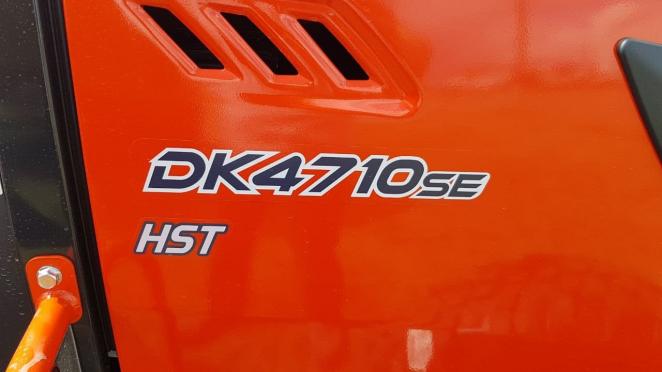

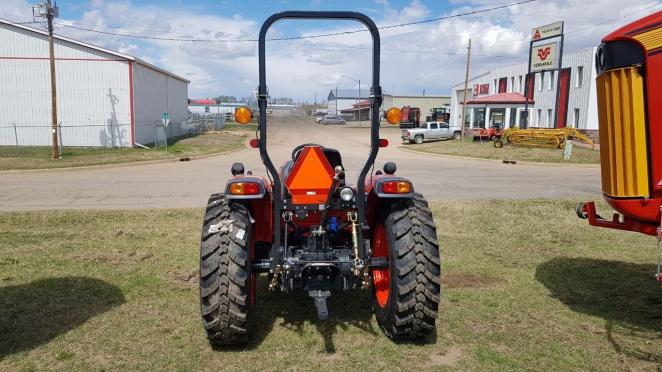

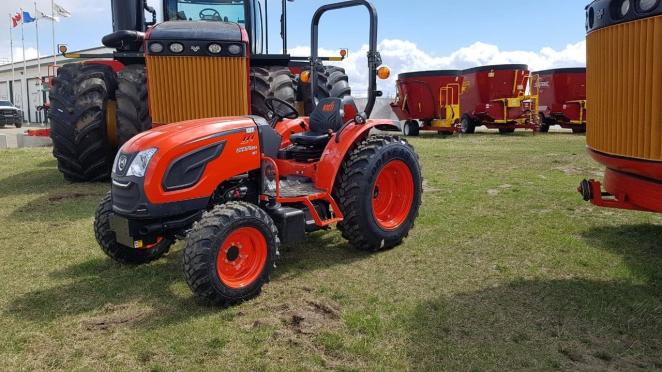

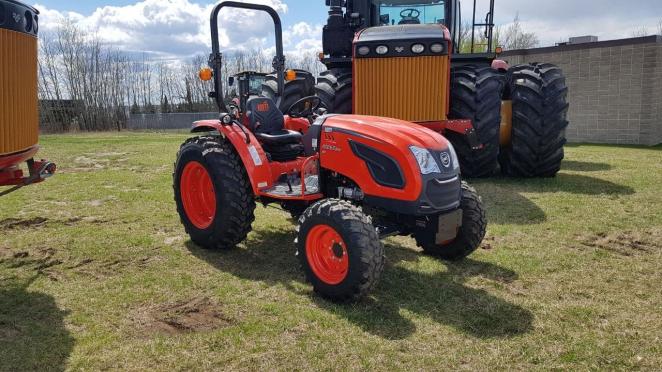

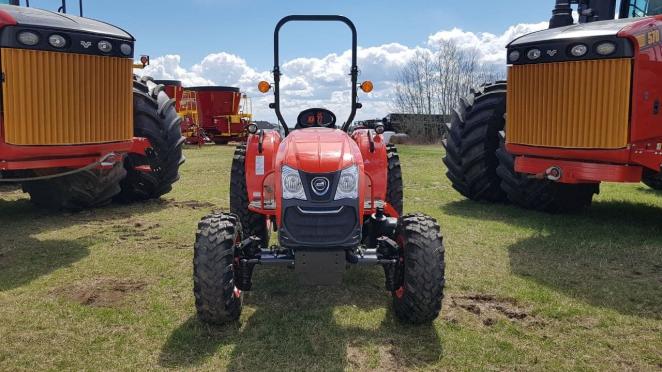

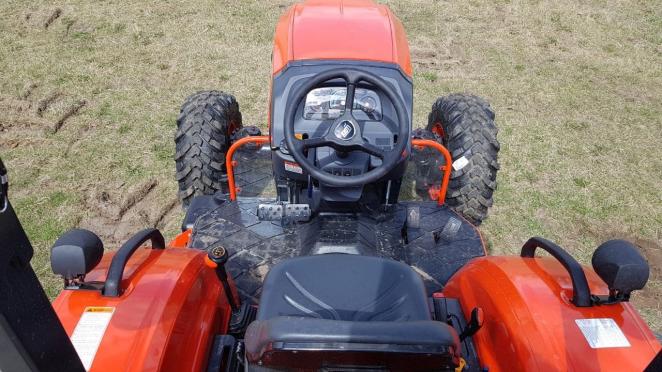

Kioti DK4710SE HST


Kioti DK4710SE HST
For Sale
Please phone us for pricing






Specifications

New/Used:  New
Type:  Tractor
Manufacturer:  Kioti

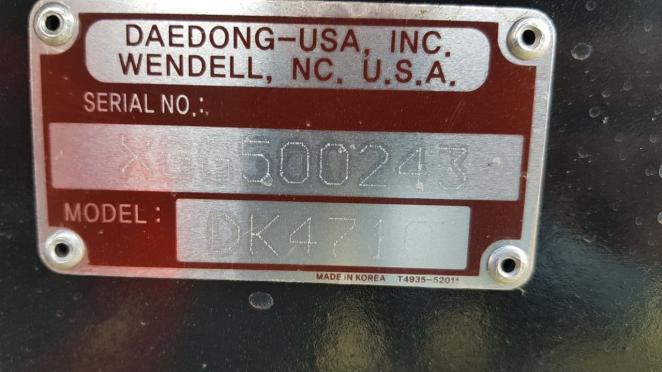

Model:  DK4710SE HST
In stock:  Sorry, we currently do not have this item in stock, but we can order this for you.

Additional Details:

Now with 0% financing available for 72 months.

Engine

Engine Model 3H-TH4C
Engine Gross Power 44.9 hp (33.5 kW)
Rated Speed 2,600 rpm
No. of Cylinders 3
Fuel Type Diesel
Displacement 111.4 cu. in. (1,826 cc)
Fuel Tank Capacity 12.7 gal. (48 L)



Transmission

Transmission Type Hydrostatic
No. of Travel Speeds - Forward / Reverse 3 Range
Min. Travel Speed of Forward w/ Ag @ Engine rated speed 0 mph (0 km/h)
Max. Travel Speed of Forward w/ Ag @ Engine rated speed 18.5 mph (29.7 km/h)



Power Take-Off (PTO)

PTO Type Transmission Independent
PTO Power 33.4 hp (24.9 kW)
Rear PTO Speed 540 rpm
Mid PTO Speed 2,000 rpm (Optional)



Brakes and Clutch

Brakes Wet Disc Type
Clutch None None



Dimensions w/ AG Tire

Length w/ 3-point hitch 125.5 in. (3,189 mm)
Width 62.8 in. (1,596 mm)
Height from Top of ROPs 96.8 in. (2,458 mm)
Wheelbase 71.3 in. (1,810 mm)
Ground Clearance 14.5 in. (368 mm)
Front Tread Ag Tires - Min 49.2 in. (1,252 mm)
Rear Tread Ag Tires - Min 49.2 in. (1,251 mm)
Min. Turning Radius w/ Brake 8.63 ft. (2.6 m)



Hydraulics

Total Pump Flow 16.49 gpm (62.4 L/min)

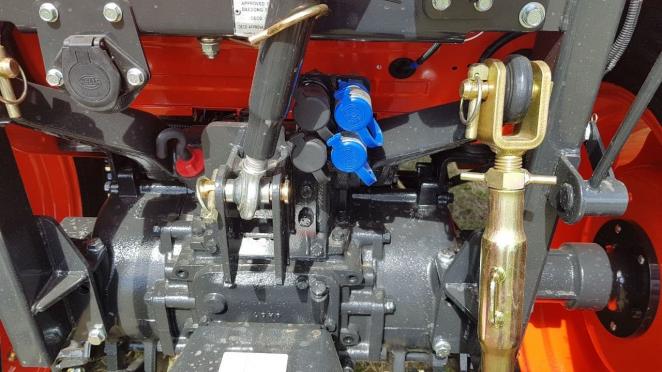

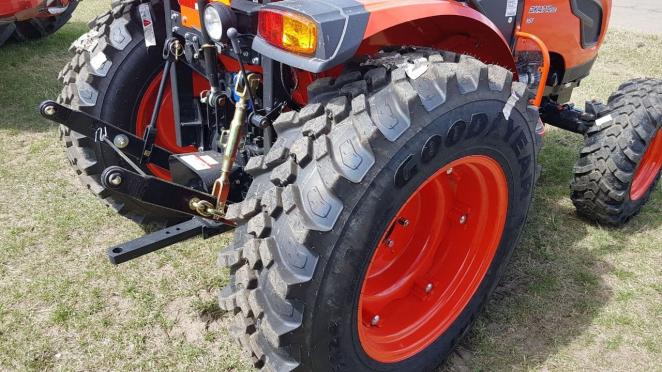

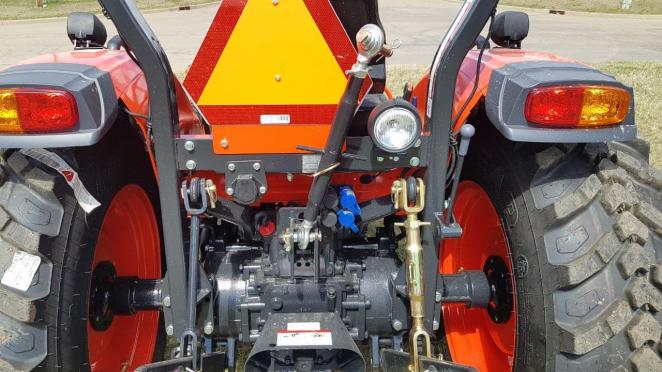

3-Point Hitch

Standard Category Category 1
Lift Capacity, 24" aft of hitch 2,716 lbs. (1,232 kg)
Control Type Position



Weight

Weight w/ Ag Tires w/ ROPs 3,522.9 lbs. (1,598 kg)
