Forestry Mulcher UMH/S - UMH/S/HP


Forestry Mulcher UMH/S - UMH/S/HP
For Sale
Please phone us for pricing






Specifications

New/Used:  New
Type:  Forestry mulcher
Manufacturer:  FAE Group
Model: UMH/S - UMH/S/HP
In stock:  Sorry, we currently do not have this item in stock, but we can order this for you.

Financing

Please enter the amount you like to borrow




Additional Details:

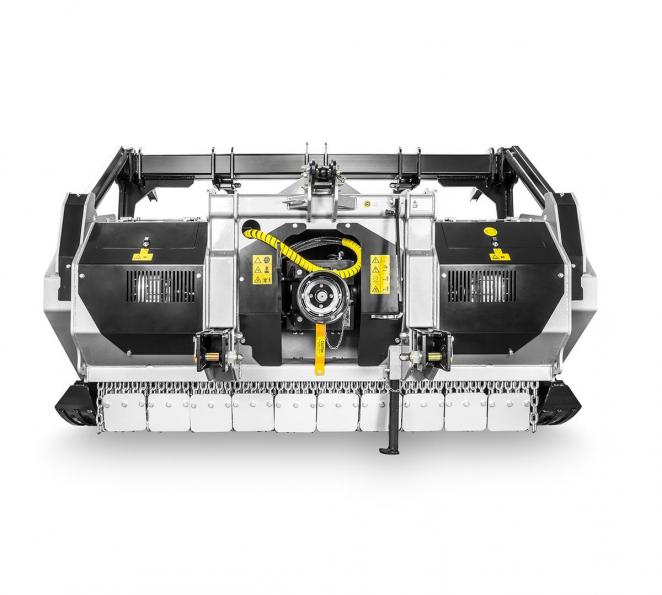

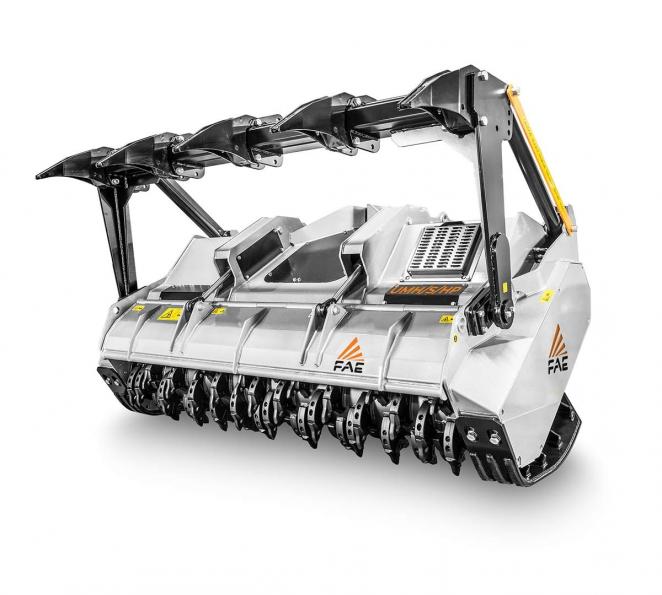

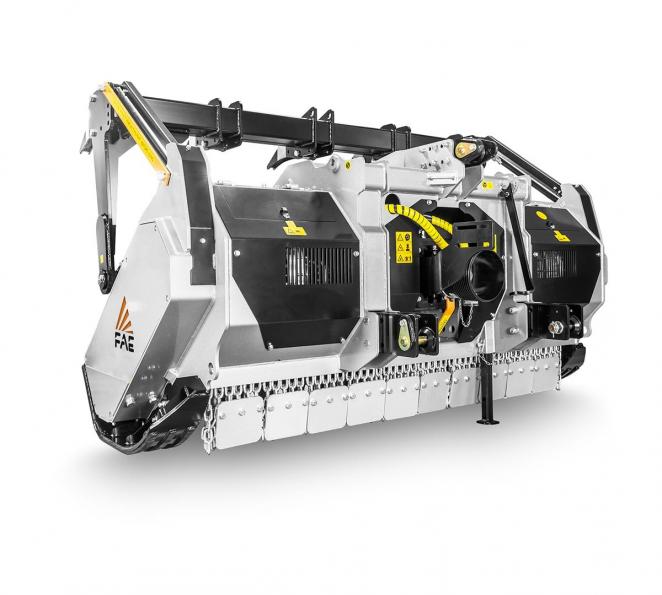

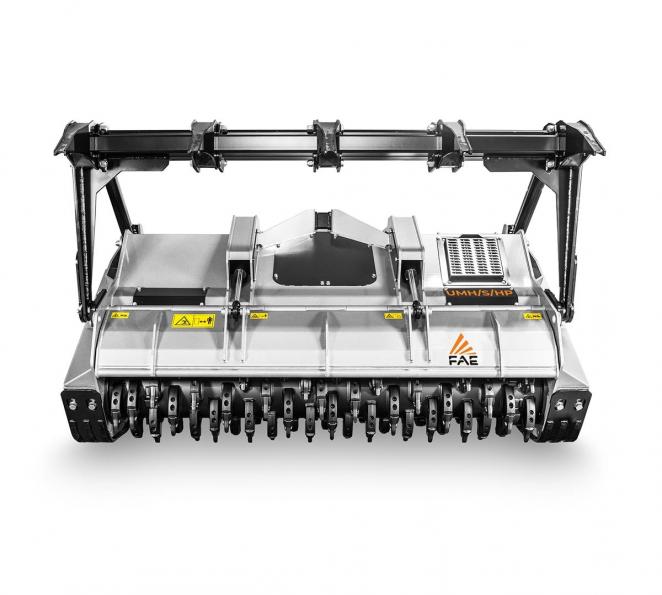

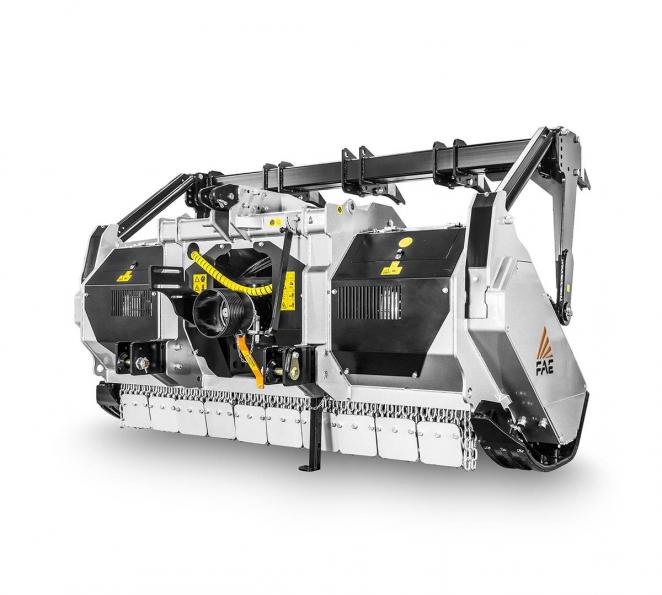

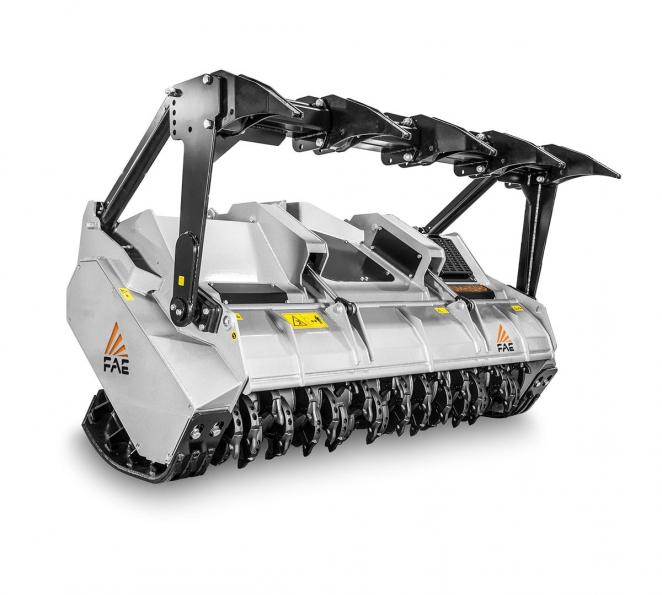

Forestry mulcher with fixed teeth rotor for tractors between 230 and 450 HP.

This model is characterized by its high productivity results and by a low power absorption, represents the excellence of FAE’s wide range of forestry mulcher, for shredding trees up to 40 cm / 16'' in diameter.
It is a machine designed and built to meet the need to work with more and more powerful tractors on the market today.
The transmission is in fact designed for the use with power up to 450 HP (HP version), while the S version can be equipped with hydrodynamic couplings to maximize the production capacity and at the same time protect the transmission of the tractor itself.
The double “anti-dust” chassis/body frame, ensures high performance and maximum safety of working and as well as the operator.
The completely revised frame of new generation, is characterized by its robustness, with the integration and the protection of cylinders and hydraulic link, third line interchangeable and externally bolted counter blades/inner lining for easy maintenance and replacement, centralized greasing hub, push frame with raker teeth and adjustable three-point linkage.
The rotor’s diameter of considerable dimension, ensured high performance, optimal material shredding results in terms of homogeneity, continuity and reliability make this model an investment made to last.

The standard equipment includes:

  • PTO shaft
  • cam clutch on side PTO
  • gearbox with freewheel
  • transmission with belts in XPC
  • hydraulic hood
  • forged and hardened interchangeable counter-blades
  • third row of interchangeable forged and hardened counter-blades
  • inner anti wear clad plates FCP
  • adjustable skids
  • adjustable extended 3 point linkage
  • enclosed machine body
  • centralized greasing hub
  • hydraulic top link
  • hydraulic hoses integrated in the frame
  • Z style self ranging system of the PTO drive shaft/gearbox
  • cylinder protection
  • stronger HP transmission for tractors up to 450 HP
  • dual row protection chains
  • protection plates for bolt-on chains

Available on demand: W style self aligning device between PTO drive shaft/gearbox, mechanical push frame, hydraulic push frame, extra ripper for push frame, hydraulic clutch transmission (UMH/S), special skids to go underground, multiple tooth options.
