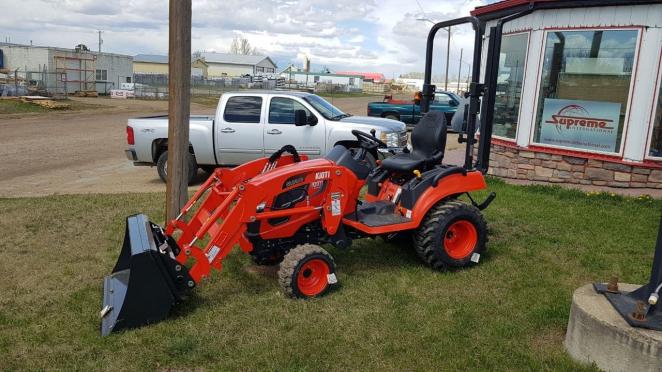

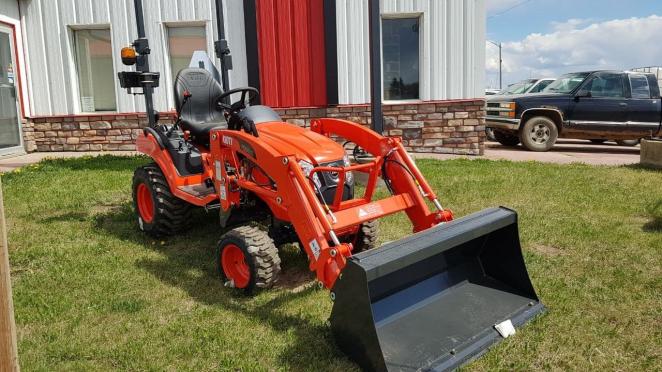

Kioti CS2520 with loader


Kioti CS2520 with loader
For Sale
Please phone us for pricing






Specifications

New/Used:  New
Type:  Tractor
Manufacturer:  Kioti
Model:  CS2520
In stock:  Sorry, we currently do not have this item in stock, but we can order this for you.

Additional Details:

Kioti tractors are Perfect for your acreage, Now with 0% financing available for 84 months.

Engine

Engine Model 3C100LWH-U2
Engine Gross Power 24.5 hp (18.3 kW)
Rated Speed 3,200 rpm
No. of Cylinders 3
Fuel Type Diesel
Displacement 61.5 cu in. (1,007 cc)
Fuel Tank Capacity 6.7 gal. (25.5 L)



Transmission

Transmission Type Hydrostatic
Main Gear Hydrostatic
No. of Travel Speeds - Forward / Reverse Infinite, 2 Range
Min. Travel Speed of Forward w/ Ag @ Engine rated speed 0 mph (0 km/h)
Max. Travel Speed of Forward w/ Ag @ Engine rated speed 9.57 mph (15.4 km/h)



Power Take-Off

PTO Type Independent
PTO Power 18.5 hp (13.9 kW)
Rear PTO Speeds(1st) 540 rpm
Mid PTO Speeds 2,200 rpm



Brakes and Clutch

Brakes Wet Multi Disc



Dimensions w/ AG Tire

Length w/ 3-point hitch 99.3 in. (2,523 mm)
Width 45.9 in. (1,168 mm)
Height From Top of the Highest Point 88 in. (2,226 mm)
Wheelbase 55.1 in. (1,400 mm)
Ground Clearance 6.4 in. (162 mm)
Front Tread Ag Tires - Min 44.6 in. (1,133 mm)
Rear Tread Ag Tires - Min 46 in. (1,168 mm)
Turning Radius w/ Brake 8.2 ft. (2.54 m)



Hydraulics

Total Pump Flow 6.97 gpm (26.4 L/min)



3-Point Hitch

Standard Category Category 1
Maximum Lifting Capacity (24”aft. of hitch) 700 lbs. (318 kg)
Control Type Position



Weight

Weight w/ Ag Tires w/ ROPS 1,554 lbs. (705 kg)
